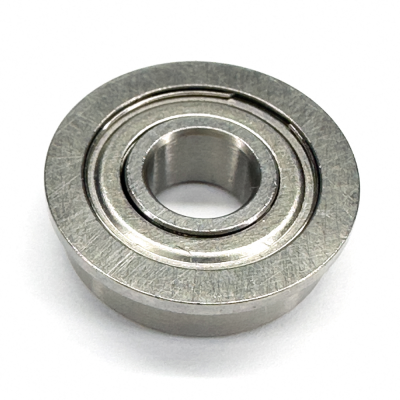

SFR2zz

Inch Size Miniature Flanged Ball Bearings feature an integrated flange on the outer ring for easy end-mounting and secure axial positioning without additional retaining components. Manufactured with stainless steel rings, they offer superior corrosion resistance and excellent performance in humid, wet, or chemically exposed environments. Available in 英寸 dimensions, these compact bearings are widely used in precision instruments, medical devices, small motors, robotics, and office equipment.

How do stainless steel balls perform at high speeds in miniature flanged bearings?

Stainless steel balls perform reliably at moderate speeds in miniature flanged bearing configurations. However, due to slightly lower hardness compared to chrome steel, they are best suited for light to moderate load applications rather than heavy-duty high-speed operation.

 Inch Size Miniature Flanged Ball Bearings feature an integrated flange on the outer ring for easy end-mounting and secure axial positioning without additional retaining components. Manufactured with chrome steel (AISI 52100) rings, they deliver high hardness, excellent wear resistance, and reliable fatigue life under moderate to high speeds and radial loads. Available in 英寸 dimensions, these compact bearings are widely used in precision instruments, medical devices, small motors, robotics, and office equipment.

What lubrication is recommended for bearings with chrome steel balls?

Standard mineral or synthetic grease is recommended. Chrome steel balls perform well with most conventional bearing lubricants, and proper lubrication is essential to protect the ball surface and maintain service life.

Inch Size Miniature Flanged Ball Bearings feature an integrated flange on the outer ring for easy end-mounting and secure axial positioning without additional retaining components. The open configuration contains no seals or shields, allowing for easy relubrication and direct access to the rolling elements — making it ideal for applications where external lubrication systems are used or where the bearing operates in a clean, controlled environment. Available in 英寸 dimensions, these compact open bearings are widely used in precision instruments, small motors, robotics, office equipment, and other applications requiring a clean, maintenance-friendly bearing solution.

What lubrication is recommended for open miniature flanged ball bearings?

Open bearings can be lubricated with either grease or oil depending on the application requirements. Oil lubrication is particularly effective in open configurations as it can be applied directly to the rolling elements, making it suitable for high-speed or temperature-sensitive applications.

Inch Size Miniature Flanged Ball Bearings feature an integrated flange on the outer ring for easy end-mounting and secure axial positioning without additional retaining components. The contact rubber seal provides superior protection against dust, moisture, and contaminant ingress, making it well suited for harsh or dirty operating environments. Grease is fully retained within the bearing for reliable lubrication throughout service life. Available in 英寸 dimensions, these compact sealed bearings are widely used in precision instruments, small motors, robotics, office equipment, and other applications requiring a clean, maintenance-friendly bearing solution.

Are sealed miniature flanged ball bearings suitable for wet or washdown environments?

Yes. The contact rubber seal provides effective protection against moisture ingress, making sealed bearings well suited for humid, wet, or occasional washdown conditions. For highly aggressive chemical environments, confirming seal material compatibility is recommended.

Inch Size Miniature Flanged Ball Bearings feature an integrated flange on the outer ring for easy end-mounting and secure axial positioning without additional retaining components. The metal shield provides effective protection against dust and light contaminant ingress while maintaining low running torque and allowing higher operating speeds compared to contact seal configurations. Grease is retained within the bearing for reliable lubrication throughout service life. Available in 英寸 dimensions, these compact shielded bearings are widely used in precision instruments, small motors, robotics, office equipment, and other applications requiring a clean, maintenance-friendly bearing solution.

What does the metal shield in a miniature flanged ball bearing do?

The metal shield acts as a barrier between the bearing interior and the external environment, protecting the rolling elements and raceways from dust and light contaminant ingress while retaining the internal grease lubrication.

Inch Size Miniature Flanged Ball Bearings feature an integrated flange on the outer ring for easy end-mounting and secure axial positioning without additional retaining components. Stainless steel balls deliver excellent corrosion resistance and reliable performance in humid, wet, or chemically exposed environments, making them well suited for applications where standard chrome steel balls would be prone to oxidation or surface degradation. Available in 英寸 dimensions, these compact bearings are widely used in precision instruments, medical devices, small motors, robotics, and office equipment.

What environments are stainless steel balls best suited for?

Stainless steel balls are best suited for humid, wet, chemically exposed, or washdown environments where corrosion resistance is a primary requirement. They are also widely used in food processing, medical, pharmaceutical, and marine applications.

Inch Size Miniature Flanged Ball Bearings feature an integrated flange on the outer ring for easy end-mounting and secure axial positioning without additional retaining components. Chrome steel balls deliver high hardness, excellent surface finish, and strong fatigue resistance, ensuring reliable performance under continuous operation at moderate to high speeds and radial loads. Available in 英寸 dimensions, these compact bearings are widely used in precision instruments, medical devices, small motors, robotics, and office equipment.

What are the key mechanical properties of chrome steel balls?

Chrome steel balls offer high hardness (typically 60–66 HRC after heat treatment), excellent surface finish, low surface roughness, and strong rolling contact fatigue resistance, all of which contribute to reliable and long-lasting bearing performance.
