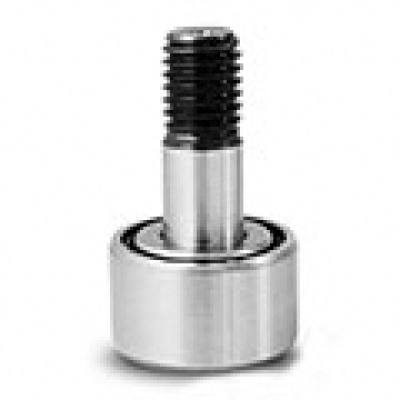

KRV19-PP
寻找最佳价格?
填写咨询表，我们将为您提供最合适的解决方案。
询价
| 部件编号 | KRV19-PP |
品牌: 养贞  |
型号对照: Schaeffler (INA) |
| 测量系统 | 公制 |
| 轴安装类型 | 压合 |
| 轴承类型 | 滚针 |
| 交叉参考 | INA |
| 载荷方向 | 径向 |
| 滚筒形状 | 加冕 |
| 内部结构 | 全面补充 |
| 类型 | 标准螺柱 |
| 安装方法 | 六角孔 |
| 密封类型 | 密封 |
| 滚筒材料 | 轴承钢 |
| 滚筒直径 | 19 mm |
| 滚筒宽度 | 11 mm |
| 螺柱直径 | 8 mm |
| 螺柱长度 | 20 mm |
| 线程 | M8x1 |
| 最小螺纹长度 | 10 mm |
| 肩部直径 | 15 mm |
| 肩长 | 0.6 mm |
| 总长度 | 32 mm |
| Rmin | 0.15 mm |
| 最大速度 | 3100 rpm |
| 紧固扭矩 螺母 | 8 Nm |
| 疲劳负荷极限 径向 | 1190 N |
| 静态径向载荷 | 8100 N |
| 动态径向载荷 | 5400 N |
| 温度范围 | -20 to 110 °C |
| RoHS | 符合要求 |
| REACH | 符合要求 |
| 重量（克） | 31 |
INTERCHANGE
The LILY Bearing part series KRV19-PP is a potential replacement for these common bearing part numbers.
LILY
INA CROWNED OUTER RING KRV..PP
INA CYLINDRICAL OUTER RING KRV..PPX
IKO NUMBER CROWNED OUTER RING CF..VUUR
IKO NUMBER CYLINDRICAL OUTER RING CF..VUU
SKF CROWNED OUTER RING KRV..PP
SKF CYLINDRICAL OUTER RING KRV..PPX
MCGILL CROWNED OUTER RING MCF..S
MCGILL CYLINDRICAL OUTER RING MCF..SX
INA CROWNED OUTER RING KRV..PP
INA CYLINDRICAL OUTER RING KRV..PPX
IKO NUMBER CROWNED OUTER RING CF..VUUR
IKO NUMBER CYLINDRICAL OUTER RING CF..VUU
SKF CROWNED OUTER RING KRV..PP
SKF CYLINDRICAL OUTER RING KRV..PPX
MCGILL CROWNED OUTER RING MCF..S
MCGILL CYLINDRICAL OUTER RING MCF..SX
LKRV19-PP
KRV 19 PP
KRV 19 PPX
CF 8 VUUR
CF 8 VUU
KRV 19 PP
KRV 19 PPX
MCF-19-S
MCF-19-SX
KRV 22 PP
KRV 22 PPX
CF 10 VUURM
CF 10 VUUM
KRV 22 PP
KRV 22 PPX
MCF-22-S
MCF-22-SX
